Jakarta Faces 4 (JSF) with NoSQL as Backend DataAccess Example

This example demonstrates the usage of the j-framework in creating a project that uses relational database engine as persistence layer, and uses MongoDB.


  1. You should have JDK 17+ Installed. (Click Here).

  2. You should have MongoDB installed. (Click Here).

  3. You should create a Maven Project.

  4. You should enable snapshot versions. (Click Here).

Project Content:

This section contains what you should add to your code structure for this example.

  1. Maven Project with pom.xml that has the following contents:

<project xmlns="http://maven.apache.org/POM/4.0.0"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
  1. Database configurations file located at src/main/resources/config.properties that has the following content:

  1. Java Model class is located at src/main/java/com/app/person/Model.java that has the following content:

package com.app.person;

import java.io.Serializable;

public class Model implements Serializable {
	private String id;
	private String nationalId;
	private String name;
	private String email;
	private String address;

	public String getId() {
		return id;

	public void setId(String id) {
		this.id = id;

	public void setNationalId(String nationalId) {
		this.nationalId = nationalId;

	public String getNationalId() {
		return this.nationalId;

	public void setName(String name) {
		this.name = name;

	public String getName() {
		return this.name;

	public void setEmail(String email) {
		this.email = email;

	public String getEmail() {
		return this.email;

	public void setAddress(String address) {
		this.address = address;

	public String getAddress() {
		return this.address;

	public boolean equals(Object obj) {
		if (obj == null) {
			return false;
		return this.getId().equals(((Model) obj).getId());

	public int hashCode() {
		if (this.id == null) {
			return toString().hashCode();
		return this.id.hashCode();

	public String toString() {
		StringBuffer buf = new StringBuffer();
		return buf.toString();
  1. Faces Controller located at src/main/java/com/app/person/Controller.java which contains the following:

package com.app.person;

import java.util.List;
import java.util.UUID;
import java.util.Vector;

import jakarta.faces.view.ViewScoped;
import jakarta.inject.Named;

import com.jk.data.dataaccess.JKDataAccessFactory;
import com.jk.data.dataaccess.nosql.JKNoSqlDataAccess;
import com.jk.web.faces.controllers.JKWebController;

public class Controller extends JKWebController {
	JKNoSqlDataAccess da = JKDataAccessFactory.getNoSqlDataAccess();
	Model model;
	List<Model> modelList;
	List<Model> filterList;

	public boolean isAllowAdd() {
		return getModel().getId() == null;

	public String add() {
		success("Added Successfully");
		return null;

	public boolean isAllowUpdate() {
		return getModel().getId() != null;

	public String update() {
		String id = getModel().getId();
		success("Updated Successfully");
		// to ensure getting updated version from DB
		this.model = da.find(Model.class, id);
		return null;

	public boolean isAllowDelete() {
		return getModel().getId() != null;

	public String delete() {
		success("Deleted Successfully");
		return null;

	public String reset() {
		return null;

	public Model getModel() {
		if (model == null) {
			model = new Model();
		return model;

	public void setModel(Model model) {
		this.model = model;

	public List<Model> getModelList() {
		if (modelList == null) {
			modelList = da.getList(Model.class);
		return modelList;

	public List<Model> getFilterList() {
		return filterList;

	public void setFilterList(Vector<Model> filterList) {
		this.filterList = filterList;

	protected void refresh() {
		this.modelList = null;
  1. Faces View located at src/main/webapp/index.xhtml which contains the following:

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" xmlns:h="http://java.sun.com/jsf/html" xmlns:p="http://primefaces.org/ui" xmlns:ui="http://xmlns.jcp.org/jsf/facelets" xmlns:c="http://xmlns.jcp.org/jsp/jstl/core" xmlns:f="http://xmlns.jcp.org/jsf/core">
<ui:composition template="/WEB-INF/templates/default.xhtml">
	<ui:define name="page-title">Home Page</ui:define>
	<ui:define name="contents">
		<div class="product-banner">
			<div class="product-name">Welcome to j-framework Demo</div>
			<div class="product-summary">Your product summary</div>
			<div class="product-version">Version 1.0</div>
  1. Main java class located at src/main/java/com/app/App.java which contains the following:

package com.app;

import com.jk.web.embedded.JKWebApplication;

public class App {
	public static void main(String[] args) {

Alternatively, you can clone or download the tutorial repository then import the project into your IDE.

How to run Project:

  1. Set up the project with the content shown above.

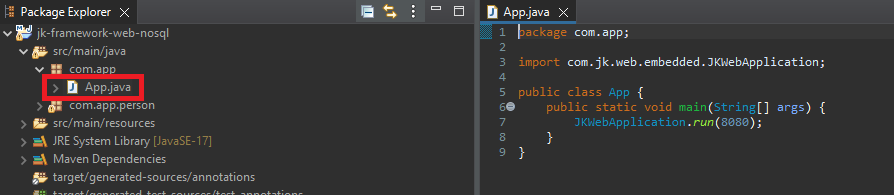

  2. Inside your IDE, go to the src/main/java/com/app/App.java class.

Main Class

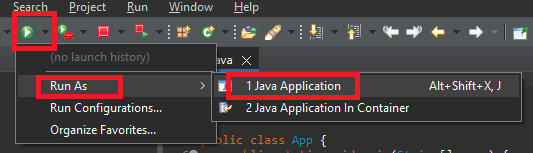

  1. Next, run it as a Java Application.

Run as Java Application

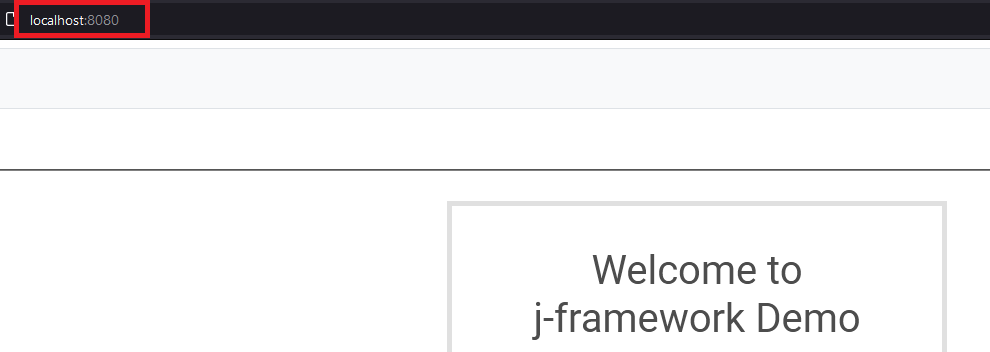

  1. Your program will start running and will open your browser to show you the result of the run. Alternatively, after running the code, you can open any browser to localhost on port 8080, and it will show you the run output as well.


Example Explanation

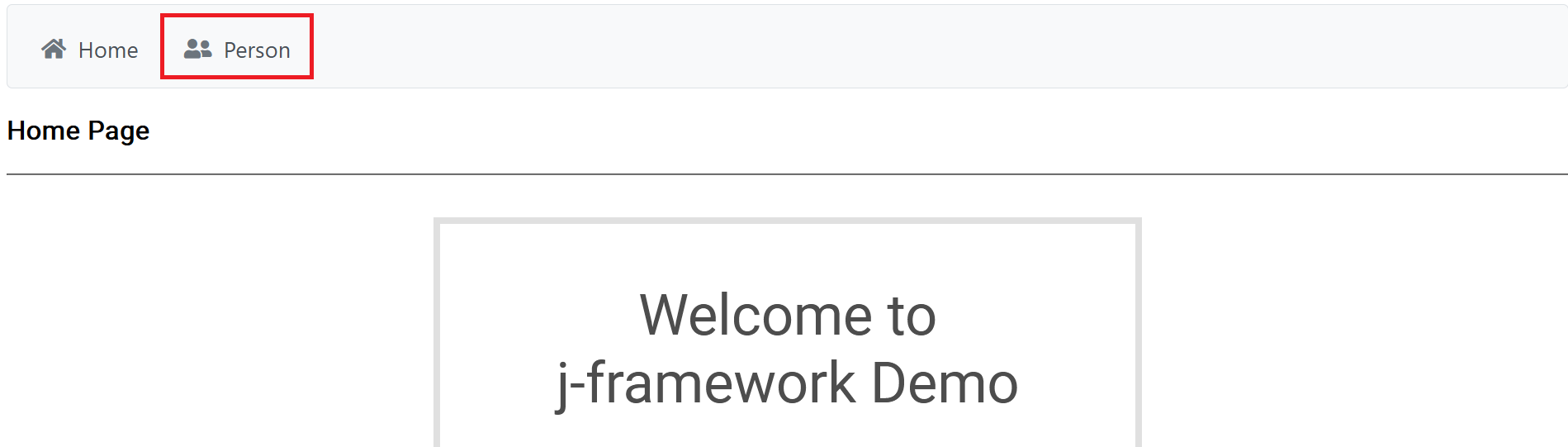

  1. The first page you would see when you run the code is the home page, from it, you can see the link to the Person page.

Example Run 1

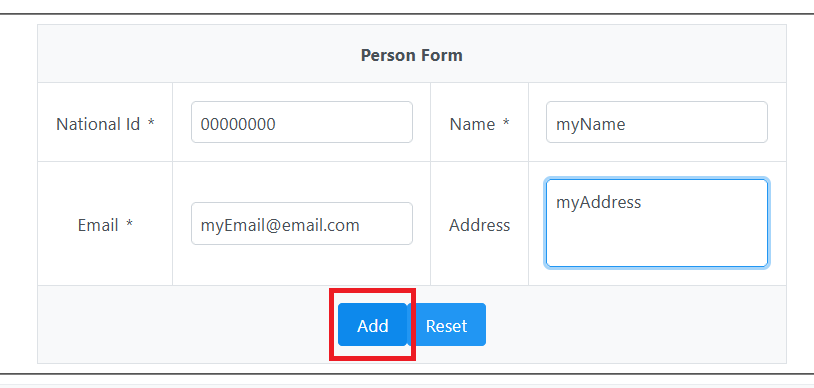

  1. After heading to the Person page, you will see a form which will enter the data you input in it into the database. After filling in the form, press the Add button to add it to the database.

Example Run 2

  1. You can see the new entry in the person data table shown below the form.

Example Run 3

  1. Pressing the Reset button will clear the data inside the form fields.
